* Powerful, deep bass, precise, transparent, spatial and very dynamic reproduction of music,
  exact timing with live-character

* High current capability and damping factor, especially for low-efficient loudspeakers
  with critical or low impedance

* High stability driving capacitive loudspeaker loads

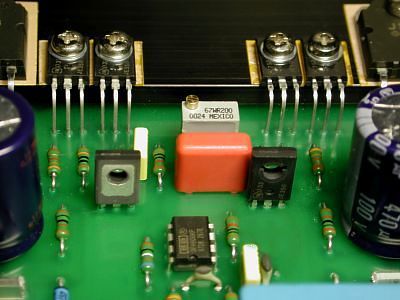

* A professional class A input circuit, an extremely linear class A current mirror driver stage
  (with hand-selected high-frequency transistors) and 10 or 12 hand-selected to very high

  quiescent current adjusted power mosfets determine lowest distortion level and an

  excellent harmonic spectrum

* Separated power supplies for input/driver stage and power mosfets, fast recovery diodes,
  gigantic total power supply capacity of more than 83 000 Microfarads

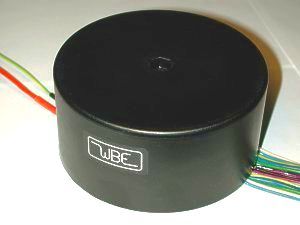

* Shielded, plastic moulded 800VA torroid transformer with separated coils for the
  mosfet section and driver stage

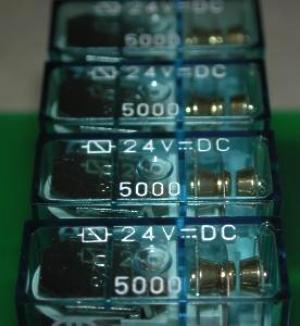

* An intelligent security circuit controls loudspeaker output with 5 paralleled
  relais with gold plated contacts

* Switchable damping factor characteristic for perfect loudspeaker matching

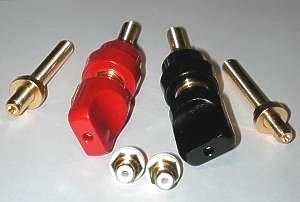

* Gold plated cinch input jack and 100 Amperes binding posts

* Input wired with high-end-cable HMS

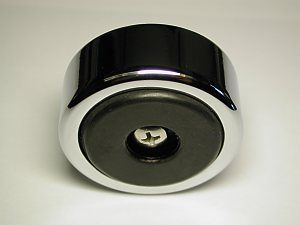

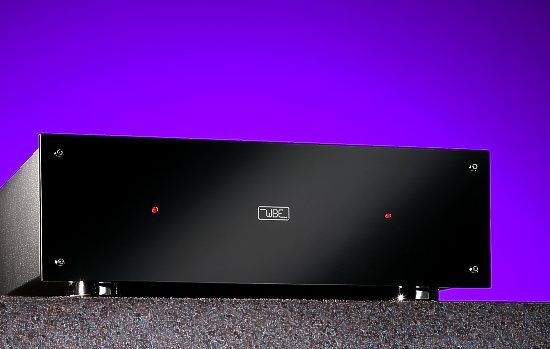

* Noble, high glossy black acryl front, massive, solid high-end-casing with resonance
  absorbing polished chrome feet

* Every device comes along with "its own" original measuring record of the frequency response,
  further measuring records are available on request

Specifications:


Gain: 17,0 times / +24,6 dB (level difference of a power amp pair at 1 kHz: <0,08 dB)

Input sensitivity: 2295 mVeff for full output into 4 Ohms, 2590 mVeff for full output into 8 Ohms

Input resistance: 28 kOhms, input DC-coupled

Damping factor at 1 kHz: switchable: 800 / 470 (measured with 8,00 Ohm resistor at 10 Watts)

Output power (sinus) at 1kHz: 380 Watts (39,0 Veff) into 4 Ohms, 240 Watts (44,0 Veff) into 8 Ohms
                                                 (THD+N = 0,2 %, with nominal mains voltage)

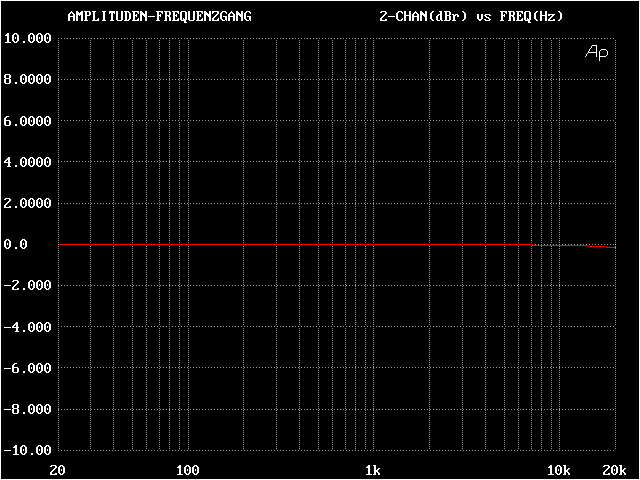

Diagram: Frequency response at 10 Watts into 4 Ohms: DC - 104 kHz -3 dB

Risetime/falltime: 3,3 µsec into 4 Ohms load (square wave 20 kHz, 12 Vss, measured from 10 % to 90 %)

Max. DC Output offset: +/- 22 mV

Signal to noise ratio: -102 dB (A-weighted, ref. to 6,325 Veff, input with 40 Ohms loaded, test setup grounded)

Total harmonic distortion (THD+N): into 4 Ohms: 0,0028 %, into 8 Ohms: 0,0014%
                                                         (measured at 1 kHz and 10 Watts, test setup grounded,
                                                         measuring bandwidth 22 Hz - 22 kHz)

Quiescent current with 10 Mosfets: 524 +/- 5 mA  (after a warm-up time of 90 min, at nominal mains voltage minus 3 V AC)

Quiescent current with 12 Mosfets: 565 +/- 5 mA  (after a warm-up time of 90 min, at nominal mains voltage minus 3 V AC)

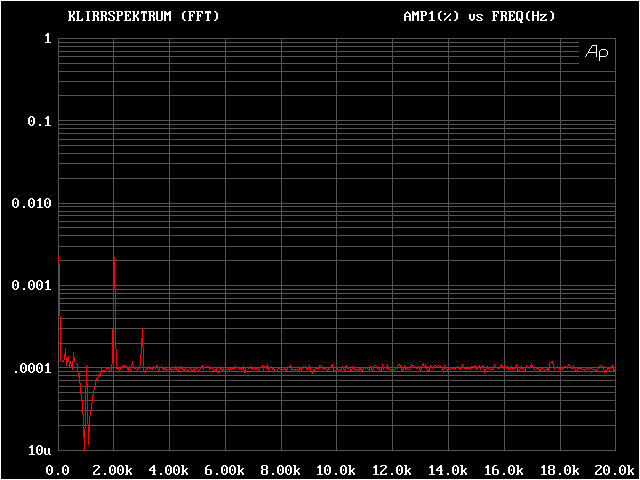

Diagram: Harmonic spectrum at 10 Watts into 4 Ohms (1 kHz, 12 Mosfets)

Security circuit disconnects loudspeaker:

* when device is switched on for a delayed switch-on of the output
* if an internal fuse blasts
* at break-down of an internal supply voltage
* at an interruption of mains voltage
* at too high level of very low frequencies or at DC offset at the output
* at too high level of very high frequencies or oscillating at the output



After end of a break-down the output will work again.

Dimensions: W 435mm x H 145mm x D 395mm (inclusive rear heat sink)

Weight: 18,5  kg
