Reference Line Preamp "Continuance No.84 MK4"
in our special tube-hybrid technology *
* in our special tube-hybrid technology we combine the precision,
power and speed of transistors with the smoothness, clarity and
richness in tonal colour of tubes
* Unrivalled musicality, precise, transparent, spatial and very dynamic reproduction of music,
powerful, deep bass, exact timing with live-character
* The voltage amplification with channel separated double triodes ECC83 and a
professional class A output stage determine a widely extended frequency
response, an excellent channel separation and an extremely sweet tempered
triode distortion performance
* Contact optimized ceramic tube sockets
* Completely new developed circuitry without a negative overall feedback
with only a few components in signal path, stabilized anode voltage and filament voltage,
as well as the softstart management
*
Only a few components in signal path
* Complex low-noise voltage stabilisation for solid-state section
* Stabilized anode voltage and filament voltage, as well as the softstart management
* Relais with gold plated silver contacts
* ALPS high grade potentiometer
* Preamp and 2 external 50VA power supplies (tube- and solid state sections separated)
integrated in heavy, massive, solid high-end-casings with high glossy black acryl fronts
and resonancre absorbing polished chrome feet
* All input jacks and output jacks are gold plated
* Remote control for volume including a freely programmable,
learnable infrared transmitter as an option avaliable (LAZYBONES)
* Every device comes along with "its own" original measuring record of the frequency response,
further measuring records are available on request

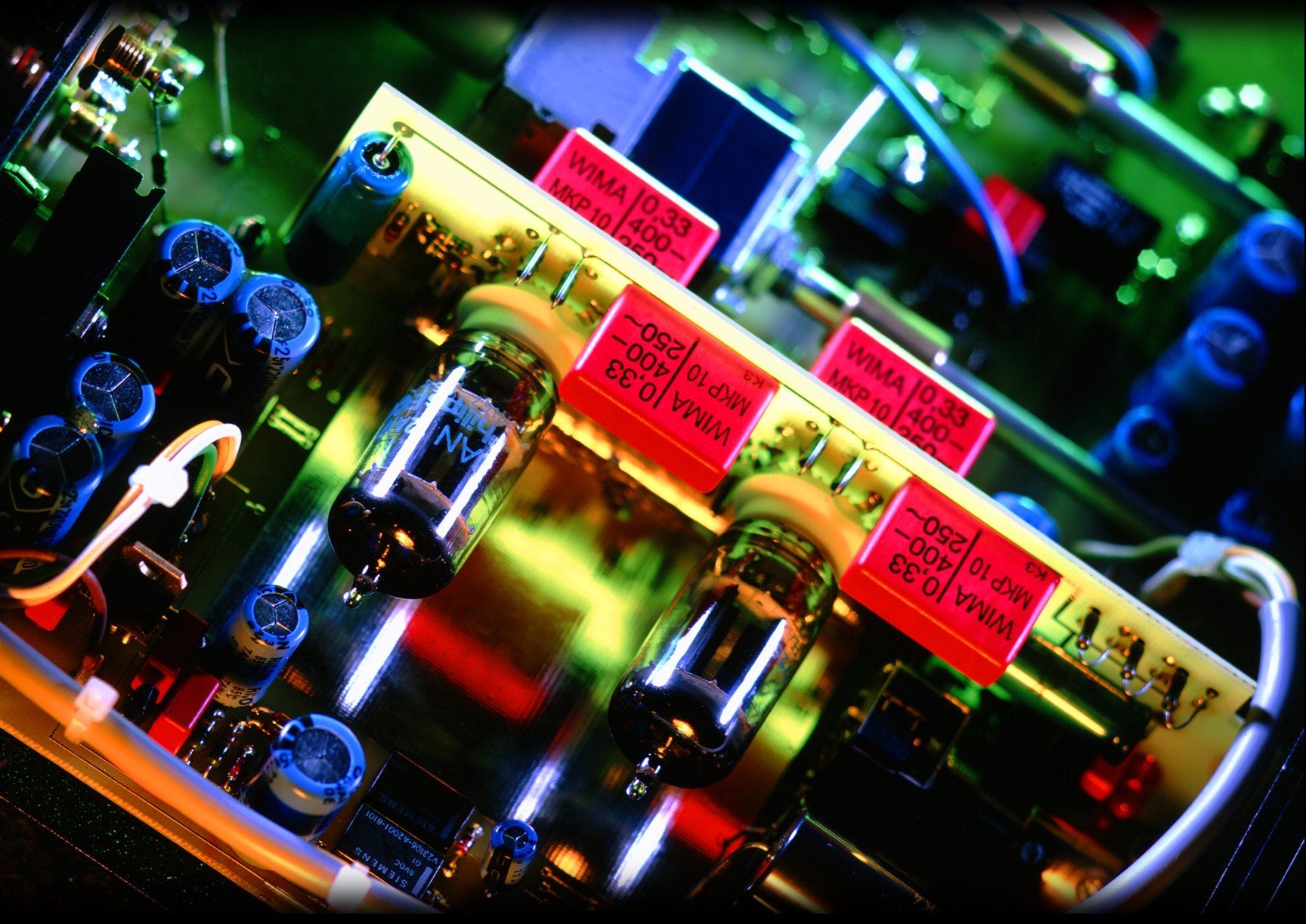

Interior view:
voltage amplification with channel separated
double triodes
Special technical features:
ALPS high grade stereo-potentiometer for volume
With device back plate screwed massive gold plated
cinch jacks for durable mechanical stability

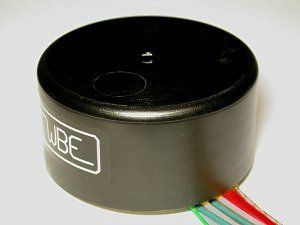

Respectively one 50VA torroid transformer for the tube-
and the solid state section (integrated in the power supplies)

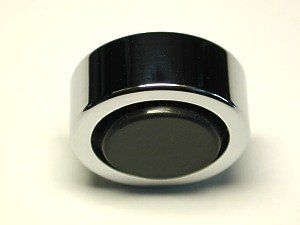

Heavy, massive resonance absorbing chrome feet

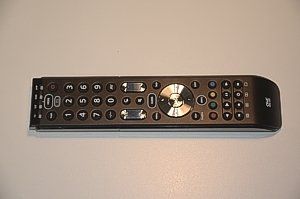

Option: IR remote control
for Purist No.48 / Veracity No.48 / Continuance No.84
with complete internal electronic circuitry and with free programmable
and learnable IR-transmitter
The IR-transmitter is delivered without batteries
Specifications:
Inputs/outputs: 5 line level inputs (cinch), 2 line level outputs (cinch: "AC Out" and "DC Out")
Maximal gain: 4,0 times / +12,0 dB
Gain error: < 0,7 dB from 0 to -40 dB
Input resistance at 1 kHz: nominal 100 kOhm, inputs DC-coupled
Outputs: "DC Out": output-resistance optionally 115 / 475 Ohms, DC-coupled;
"AC Out": output-resistance optionally 115 / 475 Ohms, coupled with 2,2 µF
Maximal output voltage (1 kHz): 7,5 Veff into 10 kOhms
Max. output current of the output stage (1 kHz): +/- 45 mA

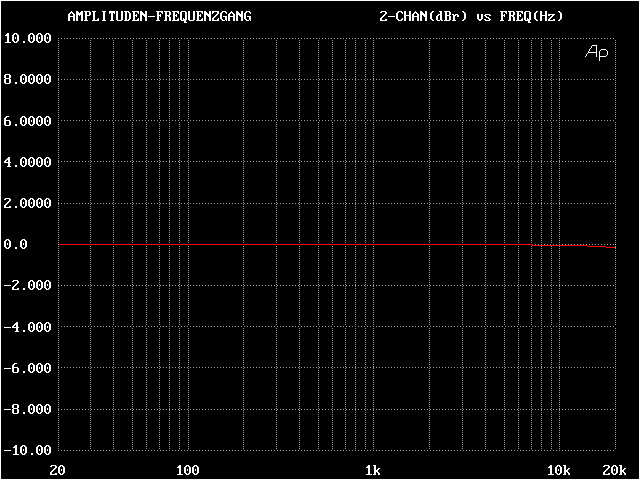

Diagram: Frequency response: 2,6 Hz - 130 kHz -3 dB, Poti in 45 degrees position
(one channel shown in diagram)
Risetime/falltime: 2,6 µsec (square wave 20 kHz, measured from 10 % to 90 %, Poti in 45 degrees position)
Max. DC output offset: +/- 0,5 mV
Crosstalk: 84 dB (2 Veff input, Poti in 45 degrees position, opposite input with 40 Ohms loaded,
GND connector grounded)
Signal to noise ratio: -94 dB (A-weighted, ref. to 500 mV, Poti at left stop, GND connector grounded)
Total harmonic distortion (THD+N): 0,0035 % at 0,7 Veff into 10 kOhms
(GND connector grounded, measuring bandwidth 22 Hz - 22 kHz,
input 4 Veff, 1 kHz)
Please do take into consideration: The value of THD+N depends on
the used tubes

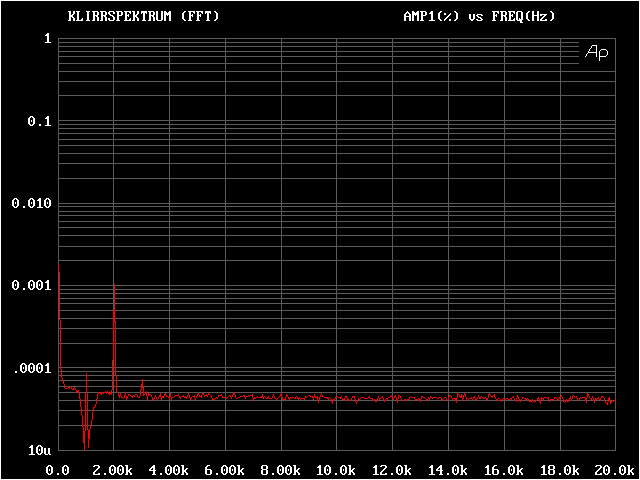

Diagram: Harmonic spectrum at 1 Veff output (1 kHz)
Dimensions: W 284mm * H 70mm * D 260mm (preamp)
W 133mm * H 70mm * D 240mm (external power supplies)
Weight: 8,8 kg (preamp inclusive 2 external power supplies)
