* Unrivalled musicality, precise, transparent, spatial and very dynamic reproduction of music,
  powerful, deep bass, exact timing with live-character

* Professional transformer-coupled digital inputs and transformer-coupled digital output (Cinch)

* Professional optical High-Speed digital input and optical High-Speed digital inputs (High-Speed-Toslink)

* Programmable precision sample rate converter in front of the D/A-converter
  allows upsampling, downsampling or native processing of the digital data

* 2 different digital filters

* Digital deemphasis

* Extremely low-jitter processing with 10ppm high-precision-quarz

* Highly precise impulse-, phase- and group-delay-optimized special differencial-analog-filter in

  4. order with following filter in 1. order.
  Both filters realized with styroflex-capacities with 1 percent tolerance

* Layout optimized to shortest signal paths

* Professional Class-A output stage

* Relais with gold plated silver contacts

* Switchable output resistance

* 5 separated, stabilized power supplies for digital and analog sections

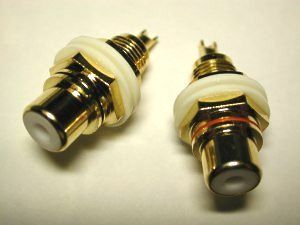

* All input jacks and output jacks are gold plated

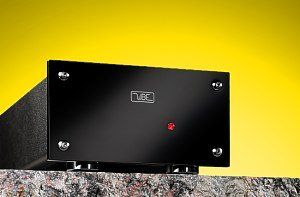

* DAC and one external 50VA power supply integrated in heavy, massive, solid high-end-
  casings with high glossy black acryl fronts and resonance absorbing polished chrome feet

* As an option available: An additional (second) external 50VA power supply integrated in a heavy,
  massive, solid high-end-casing with high glossy black acryl front and resonance absorbing
  polished chrome feet

* Every device comes along with "its own" original measuring record of the frequency response,
  further measuring records are available on request

Specifications:


Digital imputs: 1 optical imput (Toslink 147, format EIAJ RC-5720, max 12 Mbit/s)
                        3 unbal. inputs (3 x Cinch, format SPDIF), input resistance: 75 Ohm
                        Cinch-inputs transformer-coupled

Maximum input word-length: 24 bit

Sampling frequencies Toslink-input: 32 kHz / 44,1 kHz / 48 kHz / 88,2 kHz / 96 kHz / 176,4 kHz / 192 kHz
                                                          (PLL-synchronised)

Sampling frequencies Cinch-inputs: 32 kHz / 44,1 kHz / 48 kHz / 88,2 kHz / 96 kHz / 176,4 kHz / 192 kHz
                                                          (PLL-synchronised)

Amplitude range: SPDIF: 0,2 Vss bis 1,2 Vss

Digital outputs: 1 optical output (Toslink 147, format EIAJ RC-5720), max. Sampling frequency: 192 kHz
                         1 unbal. output (Cinch, format SPDIF), amplitude: 0,55 Vss at 75 Ohms, max. Sampling freq.: 192 kHz
                         Cinch-outputs transformer-coupled

Digital filters: 2 switchable digital filters, 8-times oversampling, stopband attenuation >130 dB,
                      passband ripple < +/- 0,00001 dB

Analog filter: highly precise impulse-, phase- and group-delay-optimized special differencial-analog-filter in

                     4. order with following filter in 1. order.

Analog outputs: output voltage: 2,3 Veff at 10 kOhms at digital 0 dBFS, channel difference at 1 kHz: < 0,1 dB
                          output "DC OUT": output resistance switchable 50 or 475 Ohms, DC-coupled,
                          output "AC OUT": output resistance switchable 50 or 475 Ohms, coupling via 2,2 uF

Frequency response: 44,1 kHz, digital filter 1: -0,56 dB at 20 kHz
                                   44,1 kHz, digital filter 2: -2,88 dB at 20 kHz
                                   96 kHz, digital filter 1 and 2: -0,47 dB at 20 kHz

                                   192 kHz, digital filter 1 and 2: -0,47 dB at 20 kHz

Max. DC-output offset: +/- 14 mV (at digital -999 dBFS), output "DC Out"

Signal to noise ratio: -97,5 dB (A-weighted, ref. to 500 mVeff, input digital -999 dBFS, shield of output jack floating)

Total harmonic distortion (THD+N): 44,1 kHz: 0,00096 % at 10 kOhms,
                                                         96 kHz: 0,0013 % at 10 kOhms,
                                                         192 kHz: 0,0023 % at 10 kOhms
                                                         all measurements with 24 bit, 1 kHz, digital 0 dBFS, shield of output jack floating,
                                                         measuring bandwith 22 Hz - 22 kHz)

Dimensions: W 133mm * H 70mm * D 260mm (Digital to Analog converter)
                     B 133mm * H 70mm * T 260mm (big power supply)


Weight: 4,8 kg (Digital to Analog converter with big power supply)
